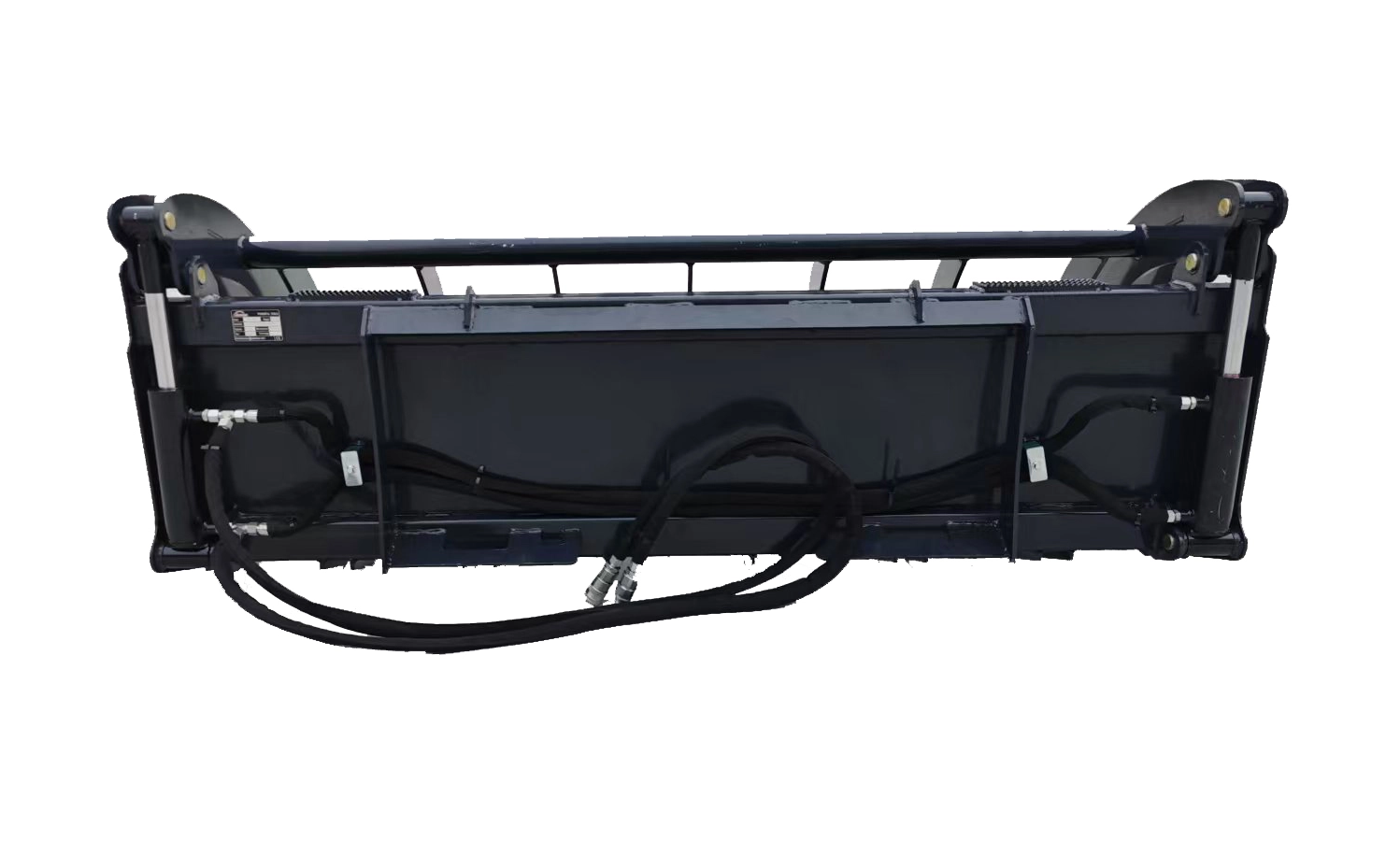

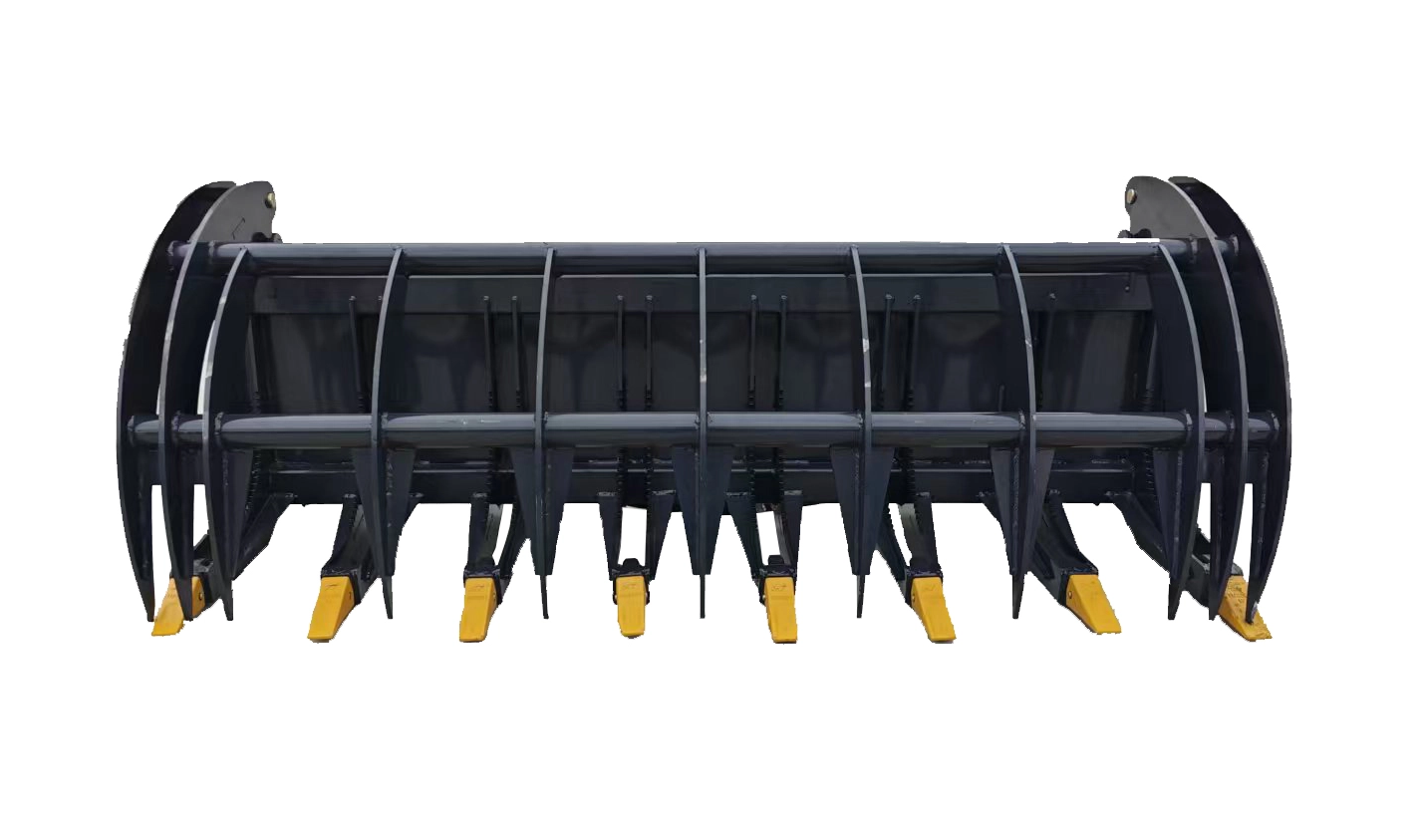

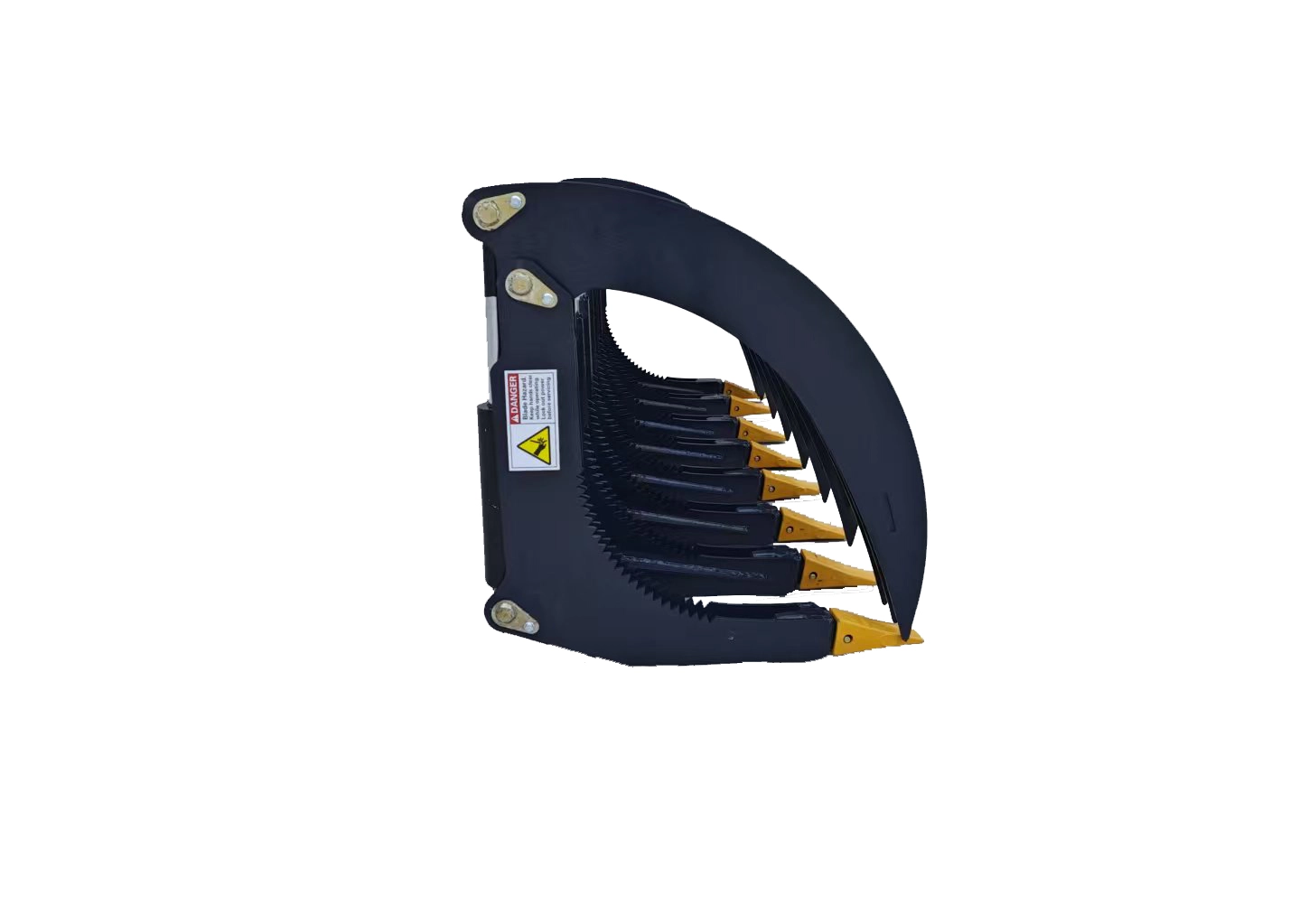

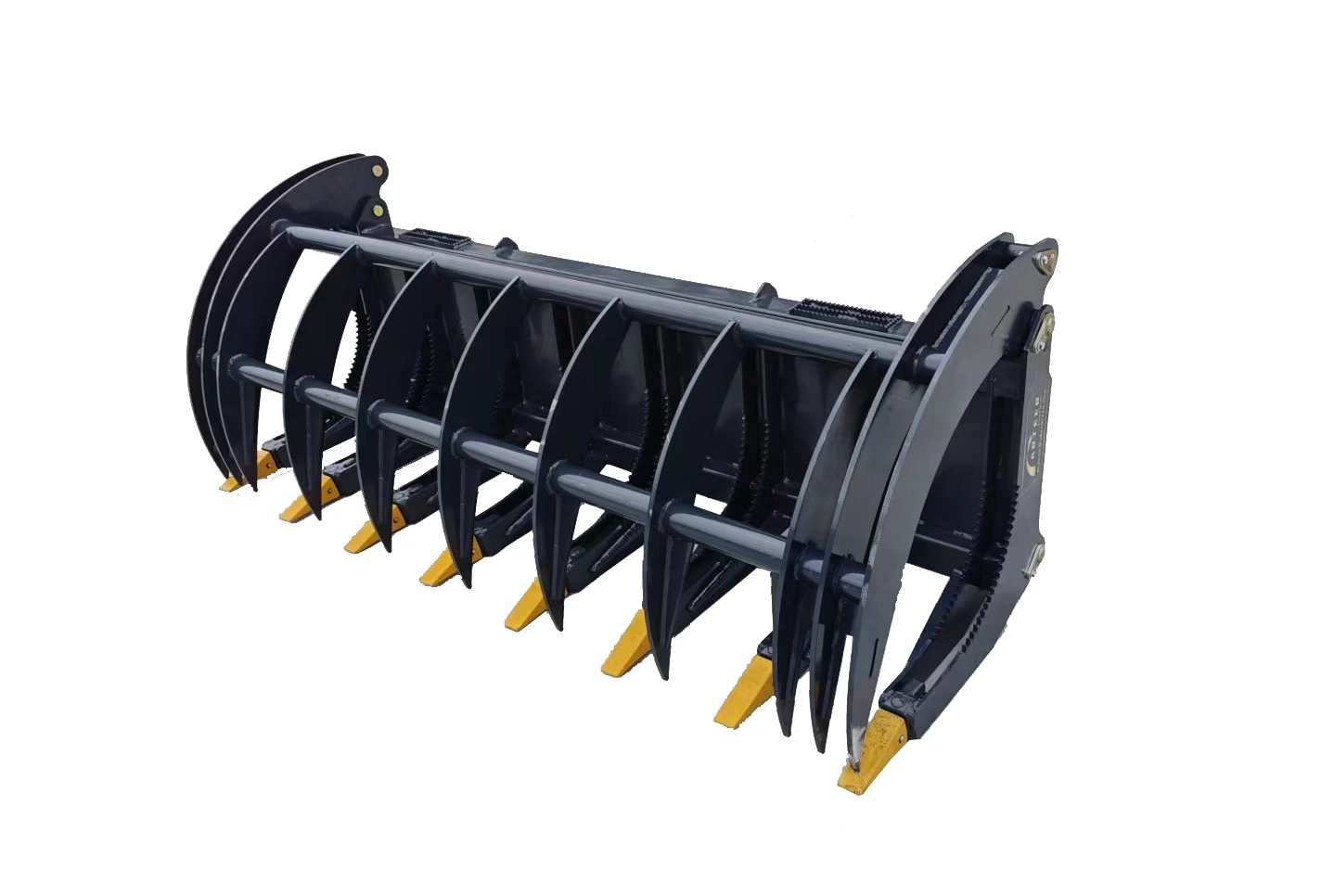

78"Skid Steer Root Rake

FEATURES:

A rake-style grapple featuring an extra-wide

opening that makes easy work of picking up

and moving rocks, logs, brush, debris, and

other odd shaped hard to lift materials.

Designed by black powder coating and has

non-slip pedals for the driver to get on and

off the loader, having an opening up to 52in.

Grapple capacities up to 3000 lbs.Cylinder

grab arms (with guards) operate at 3000 PSI

for heavy-duty work capacity.

SPECIFICATIONS:

• Opening Height : 52"

• Min Loader Rated Operating Capacity : 1860 lbs

• Max Loader Rated Operating Capacity : 3500 lbs

• Top Teeth Thickness : 0.4"

• Bottom Teeth Thickness : 0.3"

 • Teeth Length : 5.5"

• Tine Spacing : 10.7"

• Number Of Teeth : 8

• Material : Q345B

• Hydraulic Cylinders : 2.5" x 6.5"

• Maximum system pressure : 3000 psi

• Gross Weight : 710 Ibs
